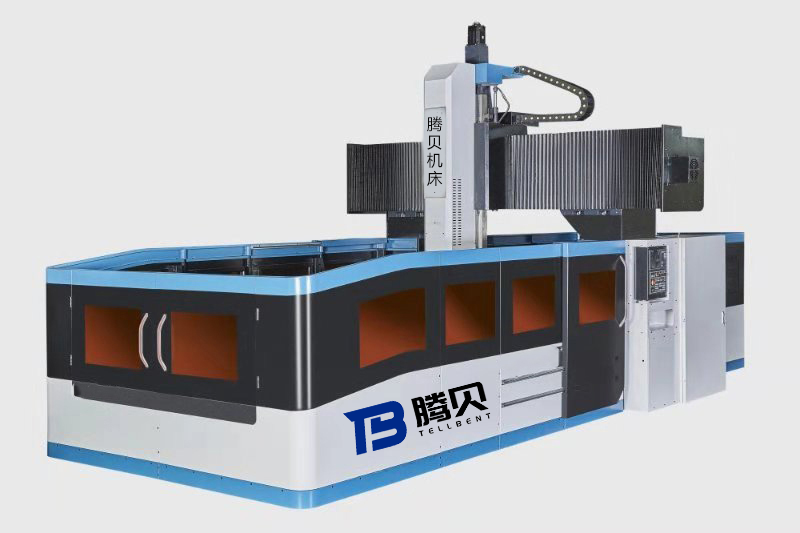

Fixed beam CNC gantry machining center TB-SKX series

Detail

Parameters

Specifications and models:		12 series		14 series
model	unit	SKX1512	SKX2012	SKX2014	SKX2514
Workbench
Length*width	mm	1500*800	2000*800	2000*1000	2500*1000
Maximum load of working table	Kg	3000	4000	5000	7000
T-slot specifications	mm	22	22	22	22
Processing range
Door width	mm	1200	1200	1400	1400
X/Y/Z three-axis travel	mm	1700/1400/800	2200/1400/800	2200/1600/800	2700/1600/800
Distance from spindle end to worktable	mm	200-100	200-100	200-100	200-100
CNC system		FANUC Oi MF (Optional Mitsubishi, Siemens）
X/Y/Z rapid shift	m/min	12/12/10	10/12/10	10/12/10	10/12/10
X/Y/Z feed speed	m/min	0.1-7	0.1-7	0.1-7	0.1-7
positioning accuracy	mm	0.02	0.02	0.02	0.02
Repeatability	mm	0.018	0.018	0.018	0.018
X/Y/Z guide rail		2-45 (X) y2-55(Y)/Hard track(Z)	2-45 (X) y2-55(Y)/Hard track(Z)	2-45 (X) /2-55(Y)/Hard track(Z)	2-45 (X) /2-55(Y)/Hard track(Z)
Spindle system
Spindle model	mm	BT50/φ155	BT50/φ155	BT50/φ155	BT50/φ155
Spindle gearbox		1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5
Maximum speed of belt drive	r/min	4000	4000	4000	4000
Spindle motor power	kw	15/18.5	15/18.5	15/18.5 •	15/18.5
Tool cooling method		Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling
air pressure
Pressure requirements	kg/cm²	≥6	≥6	≥6	≥6
Air source flow	m³/min	≥0.5	≥0.5	≥0.5	≥0.5
Dimensions	mm	500032004400	600032004400	600034004600	700034004600
Optional accessories (additional cost)
Tool magazine		24 knife disc type / 40 knife chain type	24 knife disc type / 40 knife chain type	24 knife disc type / 40 knife chain type	24 knife disc type / 40 knife chain type

The product is continuously improved, and the sample picture parameters are for reference only, subject to the contract technical parameters.

Specifications and models:		18 series
model	unit	SKX2018	SKX2518	SKX3018	SKX4018
Workbench
Length*width	mm	2000*1300	2500*1300	3000*1300	4000*1300
Maximum load of working table	Kg	6000	8000	10000	18000
T-slot specifications	mm	22	22	22	22
Processing range
Door width	mm	1800	1800	1800	1800
X/Y/Z three-axis travel	mm	2200/2000/1000	2700/2000/1000	3200/2000/1000	4200/2000/1000
Distance from spindle end to worktable	mm	200-1200	200-1200	200-1200	200-1200
CNC system		FANUC Oi MF (Optional Mitsubishi, Siemens）
X/Y/Z rapid shift	m/min	12/12/10	10/12/10	10/12/10	10/12/10
X/Y/Z feed speed	m/min	0.1-7	0.1-7	0.1-7	0.1-7
positioning accuracy	mm	0.02	0.02	0.02	0.02
Repeatability	mm	0.018	0.018	0.018	0.018
X/Y/Z guide rail		2-45 (X) /2-55(Y)/Hard track(Z)	2-45 (X) /2-55(Y)/Hard track(Z)	2-45 (X) /2-55(Y)/Hard track(Z)	2-45 (X) /2-55(Y)/Hard track(Z)
Spindle system
Spindle model	mm	BT50/φ155	BT50/φ155	BT5O/φ155	BT50/φ155
Spindle gearbox		1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5
Maximum speed of belt drive	r/min	4000	4000	4000	4000
Spindle motor power	kw	15/18.5	15/18.5	15/18.5	15/18.5
Tool cooling method		Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling
air pressure
Pressure requirements	kg/cm²	≥6	≥6	≥6	≥6
Air source flow	m³/min	≥0.5	≥0.5	≥0.5	≥0.3
Dimensions	mm	600038004800	700038004800	800038004800	10000 3800 4800
Optional accessories (additional cost)
Tool magazine		24 knife disc type / 40 knife chain type	24 knife disc type / 40 knife chain type	24 knife disc type / 40 knife chain type	24 knife disc type / 40 knife chain type

The product is continuously improved, and the sample picture parameters are for reference only, subject to the contract technical parameters.

Specifications and models:		22 series
model	unit	SKX3022	SKX3522	SKX4022	SKX5022
Workbench
Length*width	mm	3000*1800	3500*1800	4000*1800	5000木1800
Maximum load of working table	Kg	12000	14000	16000	18000
T-slot specifications	mm	22	22	22	22
Processing range
Door width	mm	2300	2300	2300	2300
X/Y/Z three-axis travel	mm	3200/2400/1000	3700/2400/1000	4200/2400/1000	5200/2400/1000
Distance from spindle end to worktable	mm	300-1300 (Short nose）	300-1300 (Short nose）	300-1300 (Short nose）	300-1300 (Short nose）
CNC system		FANUC Oi MF (Optional Mitsubishi, Siemens）
X/Y/Z rapid shift	m/min	12/12/10	10/12/10	10/12/10	10/12/10
X/Y/Z feed speed	m/min	0.1-7	0.1-7	0.1-7	0.1-7
positioning accuracy	mm	0.02	0.02	0.02	0.02
Repeatability	mm	0.018	0.018	0.018	0.018
X/Y/Z guide rail		2-55 (X) /2-55(Y)/Hard track(Z)	2-55 (X) /2-55(Y)/Hard track（Z)	2-55 (X) /2-55(Y)/Hard track（Z)	2-55 (X) /2-55(Y)/Hard track(Z)
Spindle system
Spindle model	mm	BT50/φ190	BT50/φ190	BT50/φ190	BT50/φ190
Spindle gearbox		1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5
Maximum speed of belt drive	r/min	4000	4000	4000	4000
Spindle motor power	kw	18.5/22	18.5/22	18.5/22	18.5/22
Tool cooling method		Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling
air pressure
Pressure requirements	kg/cm²	≥6	≥6	≥6	≥6
Air source flow	m³/min	≥0.5	≥0.5	≥0.5	≥0.5
Dimensions	mm	800048005200	900048005200	1000048005200	1200048005200
Optional accessories (additional cost)
Tool magazine		24 knife disc type / 40 knife chain type
Square ram	mm	Carbon fiber coupling direct coupling Ram size 400 400/450 450

The product is continuously improved, and the sample picture parameters are for reference only, subject to the contract technical parameters.

Specifications and models:		27 series
model	unit	SKX3027	SKX4027	SKX5027	SKX6027
Workbench
Length*width	mm	3000*2000	4000*2000	5000*2000	6000*2000
Maximum load of working table	Kg	15000	18000	22000	25000
T-slot specifications	mm	22	22	22	22
Processing range
Door width	mm	2600	2600	2600	2600
X/Y/Z three-axis travel	mm	3200/2800/1000	4200/2800/1000	5200/2800/1000	6200/2800/1000
Distance from spindle end to worktable	mm	300-1300 (Short nose）	300-1300 (Short nose）	300-1300 (Short nose）	300-1300 (Short nose）
CNC system		FANUC Oi MF (Optional Mitsubishi, Siemens）
X/Y/Z rapid shift	m/min	12/12/10	10/12/10	10/12/10	10/12/10
X/Y/Z feed speed	m/min	0.1-7	0.1-7	0.1-7	0.1-7
positioning accuracy	mm	0.02	0.02	0.02	0.02
Repeatability	mm	0.018	0.018	0.018	0.018
X/Y/Z guide rail		2-65 (X) /2-65(Y)/Hard track(Z)	2-65 (X) /2-65(Y)/Hard track(Z)	2-65 (X) /2-65(Y)/Hard track(Z)	2-65 (X) /2-65(Y)/Hard track(Z)
Spindle system
Spindle model	mm	BT50/φ190	BT50/φ190	BT50/φ190	BT50/φ190
Spindle gearbox		1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5	1:1/1:4 1:1/1:5.5
Maximum speed of belt drive	r/min	4000	4000	4000	4000
Spindle motor power	kw	18.5/22	18.5/22	18.5/22	18.5/22
Tool cooling method		Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling	Water cooling + air cooling
air pressure
Pressure requirements	kg/cm²	≥6	≥6	≥6	≥6
Air source flow	m³/min	≥0.5	≥0.5	≥0.5	≥0.5
Dimensions	mm	800053005400	1000053005400	1200053005400	1400053005400
Optional accessories (additional cost)
Tool magazine		24 knife disc type / 40 knife chain type
Square ram	mm	Carbon fiber coupling direct coupling Ram size 400400/450450

The product is continuously improved, and the sample picture parameters are for reference only, subject to the contract technical parameters.
