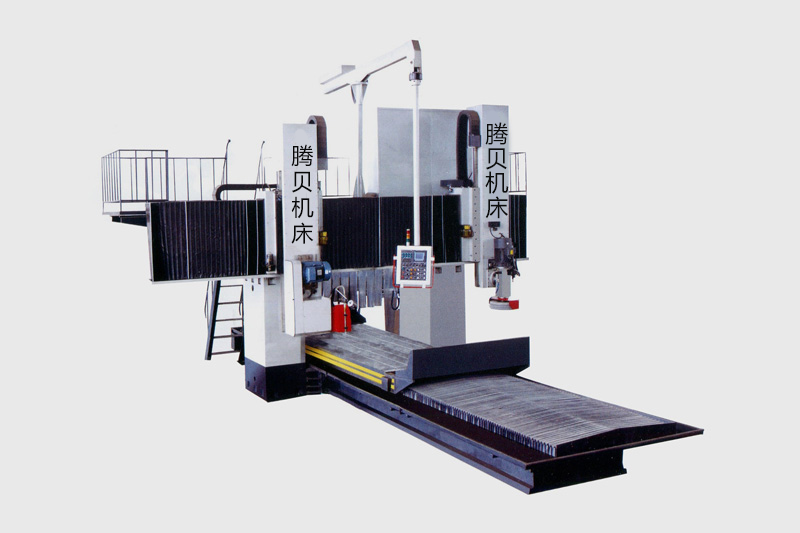

Gantry rail grinder TB-MC53 series

Detail

Parameters

Hydrostatic guide rail hydraulic station

A fixed-difference adjustable flow valve is used to adjust the floating amount of the workbench, so that the floating amount is basically the same under different load conditions, which greatly reduces the power of the main hydraulic station. The system has the characteristics of large carrying capacity, reliable and stable operation, energy saving and environmental protection.

Main tank

Unique structure, temperature rise does not exceed 15°C, no need to install a cooling device; the system can achieve impact-free commutation, stable commutation; the main oil pump motor requires only 11kw of power; the system has stable and reliable, noise Low, energy saving and environmental protection features.

Hydraulic Station

The horizontal grinding head adopts dynamic and static pressure bearing structure, which has high motion accuracy, no wear, long service life, low starting power, high dynamic bearing capacity at high speed, and good vibration resistance. The hydraulic station uses a constant pressure device to supply oil to the dynamic and static pressure grinding head. It has the characteristics of stable pressure, low noise and low temperature rise.

Specifications and models:		MC53 series gantry rail grinding machine
model	unit	MC5320-4000	MC5320-6000	MC5325-4000	MC5325-6000
Workbench
Length*width	mm	4000*1600	6000*1600	4000*2000	6000*2000
Workbench guide form		Hydrostatic guide rail	Hydrostatic guide rail	Hydrostatic guide rail	Hydrostatic guide rail
Maximum load of working table	kg	7000	9000	8000	10000
T-slot specifications	mm	22	22	28	28
Processing range
Door width	mm	2100	2100	2600	2600
X/Y/Z three-axis travel	mm	4000/2100/800	6000/2100/800	4000/2600/800	6000/2600/800
Distance from grinding wheel to work surface	mm	0-800	0-800	0-800	0-800
Moving speed and feed
Worktable moving speed	m/min	3-30	3-30	3-30	3-30
Grinding head lateral movement speed	m/min	0.1-3	0.1-3	0.1-3	0.1-3
Vertical moving speed of grinding head	m/min	0.05-2	0.05-2	0.05-2	0.05-2
Grinding head horizontal minimum feed	mm	0.005	0.005	0.005	0.005
Grinding head vertical minimum feed	mm	0.003	0.003	0.003	0.003
Spindle system
Horizontal grinding head spindle form	mm	Dynamic and static pressure spindle	Dynamic and static pressure spindle	Dynamic and static pressure spindle	Dynamic and static pressure spindle
Spindle taper		1:5	1:5	1:5	1:5
Wheel size	mm	500203100	500203100	500203100	500203100
Spindle motor power	KW	18.5	18.5	18.5	18.5
Vertical grinding head spindle form	mm	Bearing structure	Bearing structure	Bearing structure	Bearing structure
Spindle taper		1:5	1:5	1:5	1:5
Wheel size	mm	500203100	500203100	500203100	500203100
Spindle motor power	KW	15	15	18.5	18.5

The product is continuously improved, and the sample picture parameters are for reference only, subject to the contract technical parameters.

Specifications and models:		MC53 series gantry rail grinding machine
model	unit	MC5325-8000	MC5325-12000	MC5330-8000	MC5330-12000
Workbench
Length*width	mm	8000*2000	12000*2000	8000*2500	12000*2500
Workbench guide form		Hydrostatic guide rail	Hydrostatic guide rail	Hydrostatic guide rail	Hydrostatic guide rail
Maximum load of working table	Kg	1200	16000	,14000	18000
T-slot specifications	mm	28	28	28	28
Processing range
Door width	mm	2600	2600	3100	3100
X/Y/Z three-axis travel	mm	8000/2600/800	12000/2600/800	8000/3100/1000	12000/3100/1000
Distance from grinding wheel to work surface	mm	0-800	0-800	0-1000	0-1000
Moving speed and feed
Worktable moving speed	m/min	3-30	3-30	3-30	3-30
Grinding head lateral movement speed	m/min	0.1-3	0.1-3	0.1-3	0.1-3
Vertical moving speed of grinding head	m/min	0.05-2	0.05-2	0.05-2	0.05-2
Grinding head horizontal minimum feed	mm	0.005	0.005	0.005	0.005
Grinding head vertical minimum feed	mm	0.003	0.003	0.003	0.003
Spindle system
Horizontal grinding head spindle form	mm	Dynamic and static pressure spindle	Dynamic and static pressure spindle	Dynamic and static pressure spindle	Dynamic and static pressure spindle
Spindle taper		1:5	1:5	1:5	1:5
Wheel size	mm	500203100	500203100	500203100	500203100
Spindle motor power	KW	18.5	18.5	18.5	18.5
Vertical grinding head spindle form	mm	Bearing structure	Bearing structure	Bearing structure	Bearing structure
Spindle taper		1:5	1:5	1:5	1:5
Wheel size	mm	500203100	500203100	500203100	500203100
Spindle motor power	KW	18.5	18.5	22	22

The product is continuously improved, and the sample picture parameters are for reference only, subject to the contract technical parameters.
